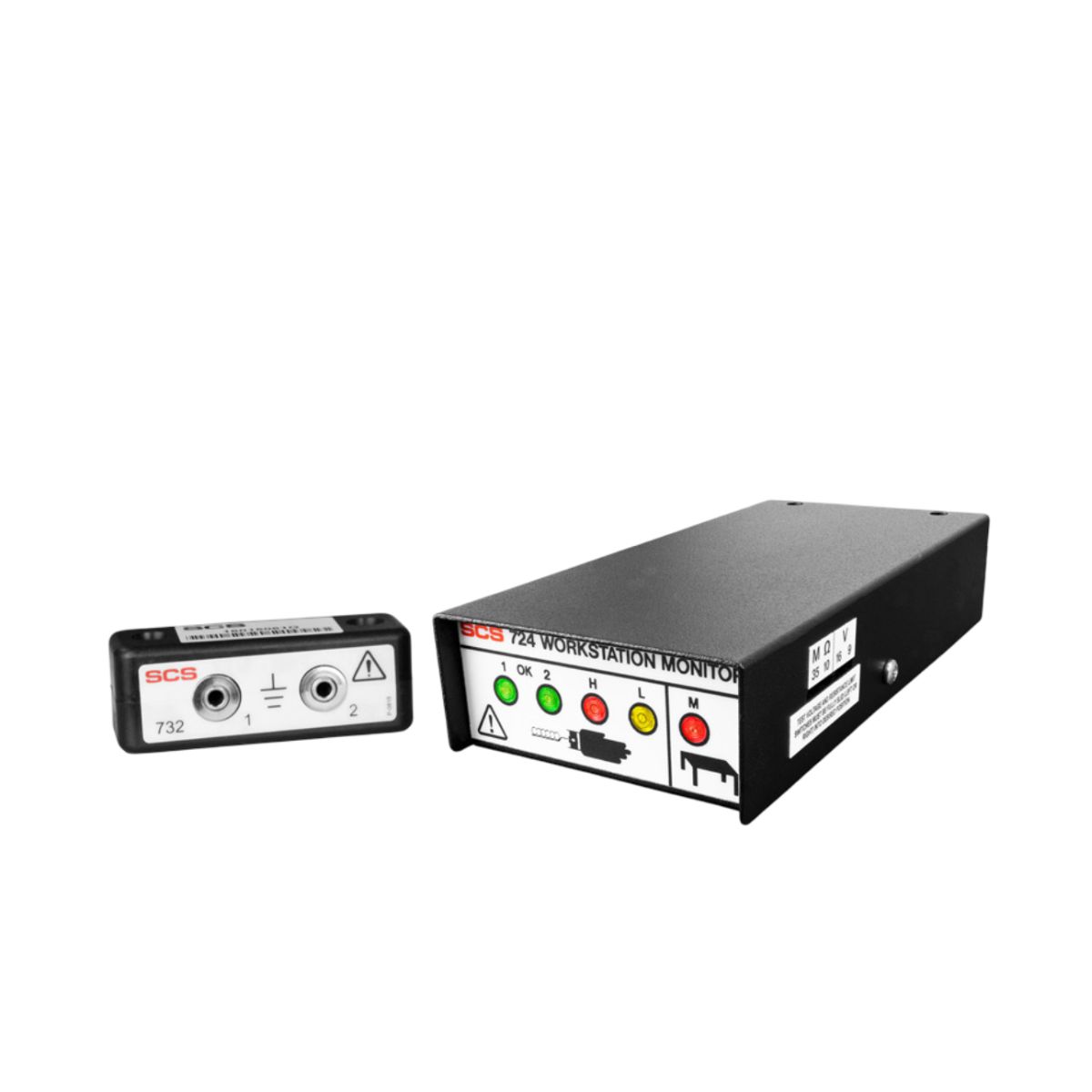

724 Workstation Monitor, North America

SCS 724 – Workstation Dual-Wire Monitor, North America

Gross Weight: 2.08 lb

Category:
Compare

Features:

  • Single workstation continuous monitor
    Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-01
  • Continuously monitors 2 operator dual-wire wrist straps and 1 worksurface mat
    Visible and audible alarms indicate improper grounding of the operator and worksurface
  • Adjustable operator test voltage and upper limit
    Test voltage can be set to 9 or 16 volts; test limit can be set to 10 or 35 megohms
  • Adjustable audible alarm
    Buzzer volume may be disabled or set to loud or soft
  • Simple installation and setup

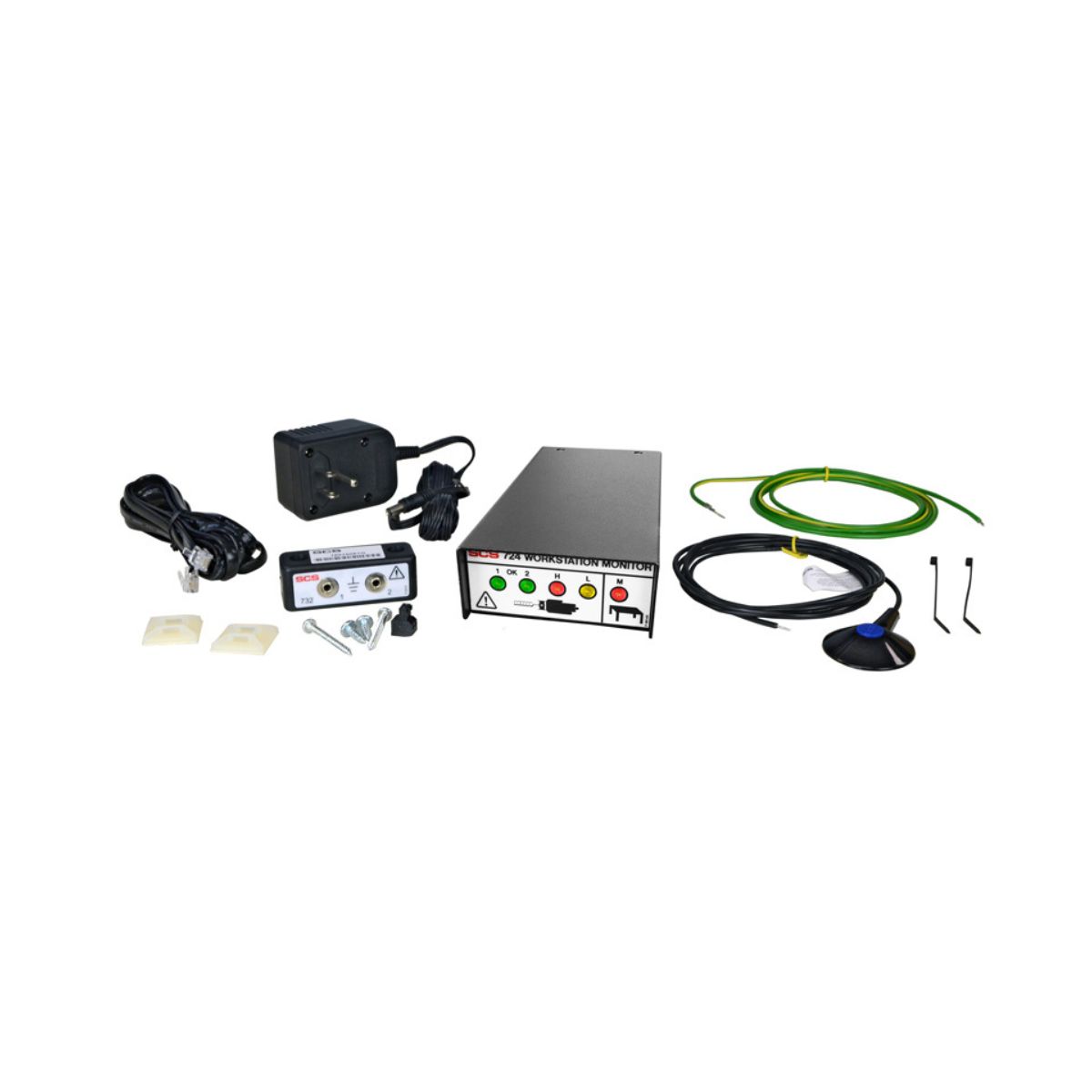

    Mounting hardware and wire management clips are included
  • North American power adapter included
  • 770065 Calibration Verification Tester sold separately
    Use to perform periodic calibration testing of the 724 Workstation Monitor
  • UL Safety Certified
    Complies UL Category Code Number NYOK
  • NIST Calibrated – Original Calibration Certificate can be Downloaded
    Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology.
  • Made in the United States of America

TB-9013 – 724 Workstation Monitor – User Guide
