How to make ESD safe work surface? ESD Control Table Mat is on the basic line of this question. ESD Control Table Mat has two co-extruded layer constructions, and these two layers are strongly stuck together and become homogenous body.
Thanks to its stable quality and steady low surface resistivity, our ESD Control Table Mat is commonly used as the top material of assembly lines and worktable in electronics and semiconductror factories.
Download the MSDS ESD Control Table Mat
| Material | Conductive Rubber, Static Dissipative Rubber |
| Thickness | 2 mm |
| Width | 120 cm |
| Length | 10 m |
| Top | 10e8 ~ 10e10 ohm/sq |
| Bottom | 10e3 ~ 10e6 ohm/sq |
| Tester | * ETS 406C Static Decay Meter |
| * 3M Model 701 Test Kit for Static Control Surfaces |
| Part Number | Description |

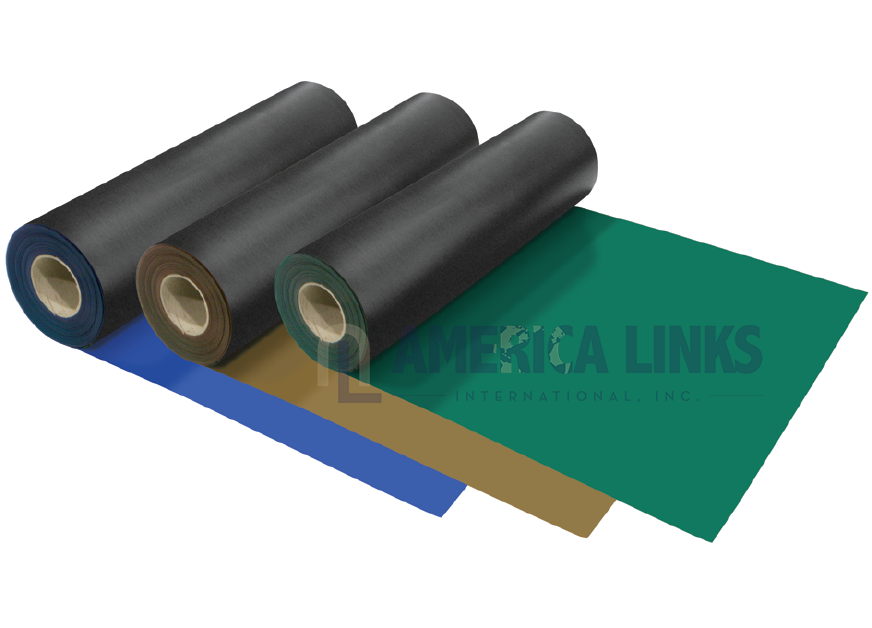

| M11-M-007-Blue | ESD Control Table Mat, Blue: 10m x 1.2m x 2mm Thickness. |
| M11-M-007-Gray | ESD Control Table Mat, Gray: 10m x 1.2m x 2mm Thickness. |
| M11-M-007-Green | ESD Control Table Mat, Green: 10m x 1.2m x 2mm Thickness. |
